SHOEI TRIMMER

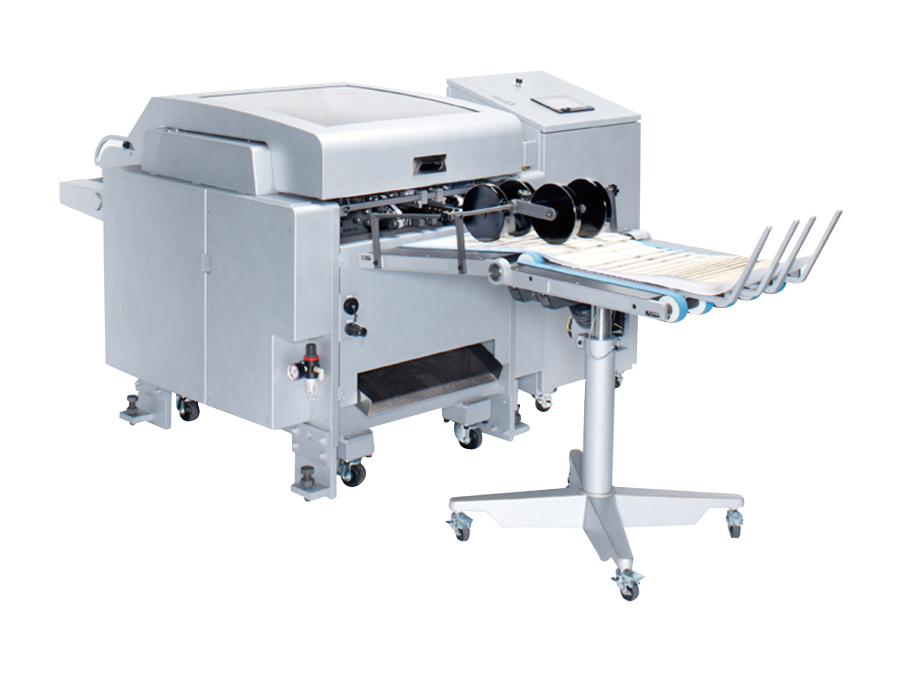

Compact sized Three-Knife Trimmer

Compact sized Three-Knife Trimmer

Due compact size, no need larger space, smaller enough.
Capable installation of Center Cut (4th & 5th Cutting) apparatus.
From Cutting to Bleed Off by 6-10mm, need applicable knifes to be exchanged.
As this trimmer is Unit Mode, capable outlined three knife trimming for Folding Machine, Glue/Binding Machine, Stitching machine (Saddle stitching Side stitching), Adhesive Binding together with line/feeder unit connection.
Liquid Crystal Display manipulation available: By housing micro-computer, various scale setting with auto-control mode.

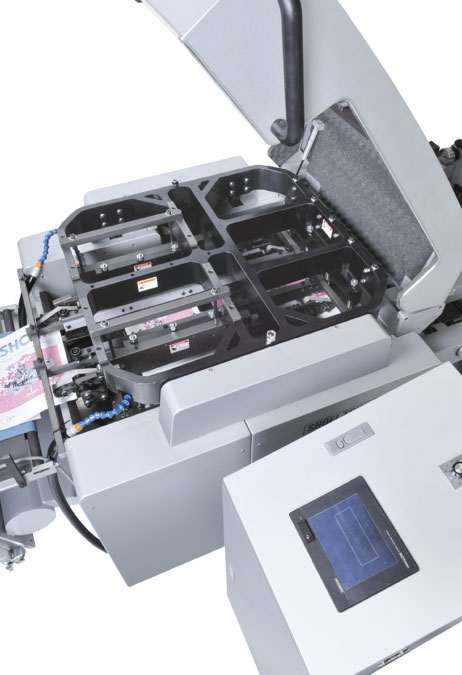

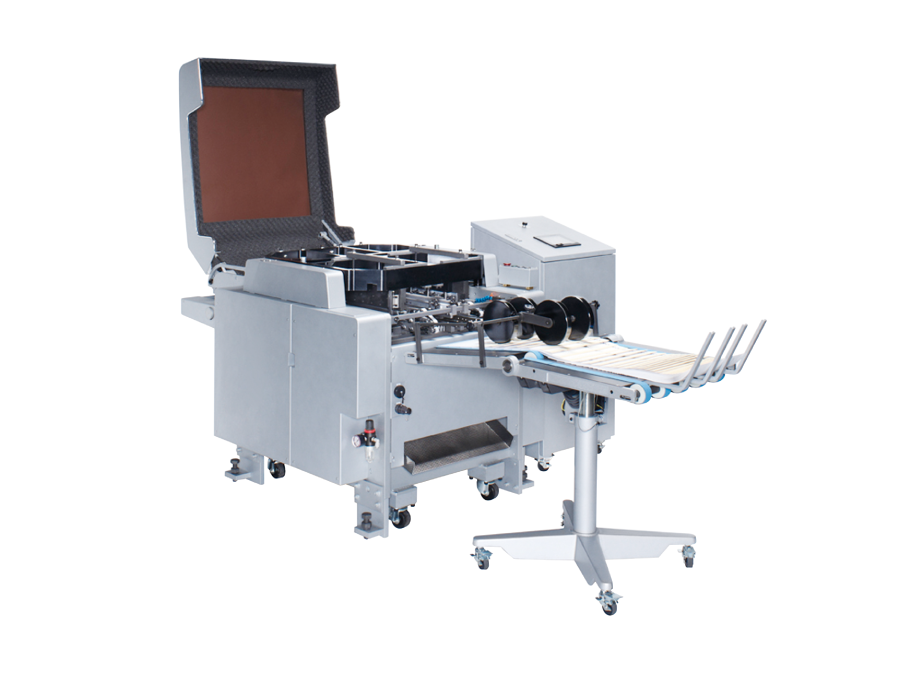

Opening (Security Cover)

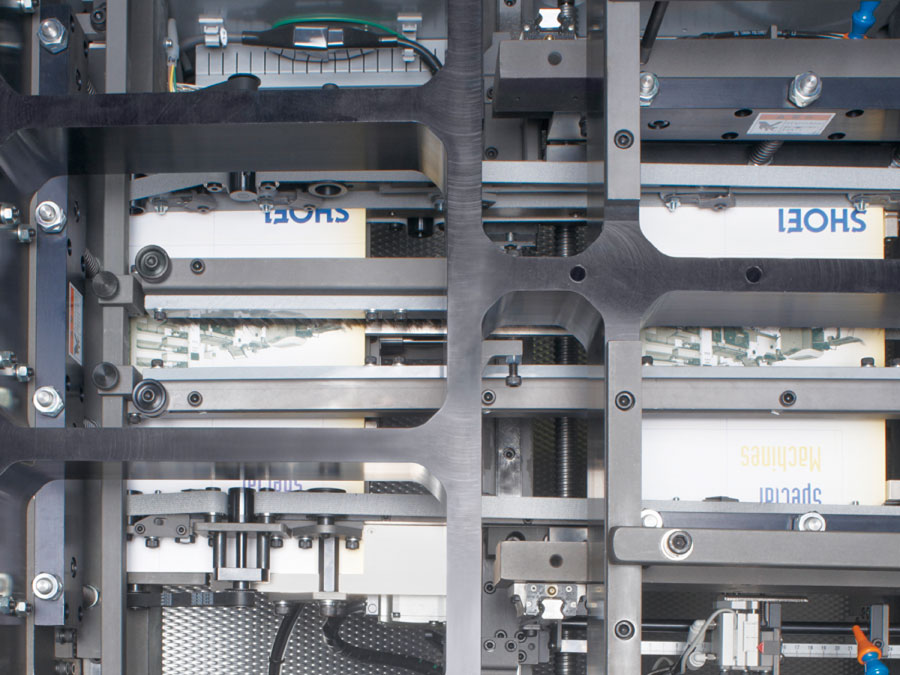

Guillotine (Fore-edge/Top and tail)

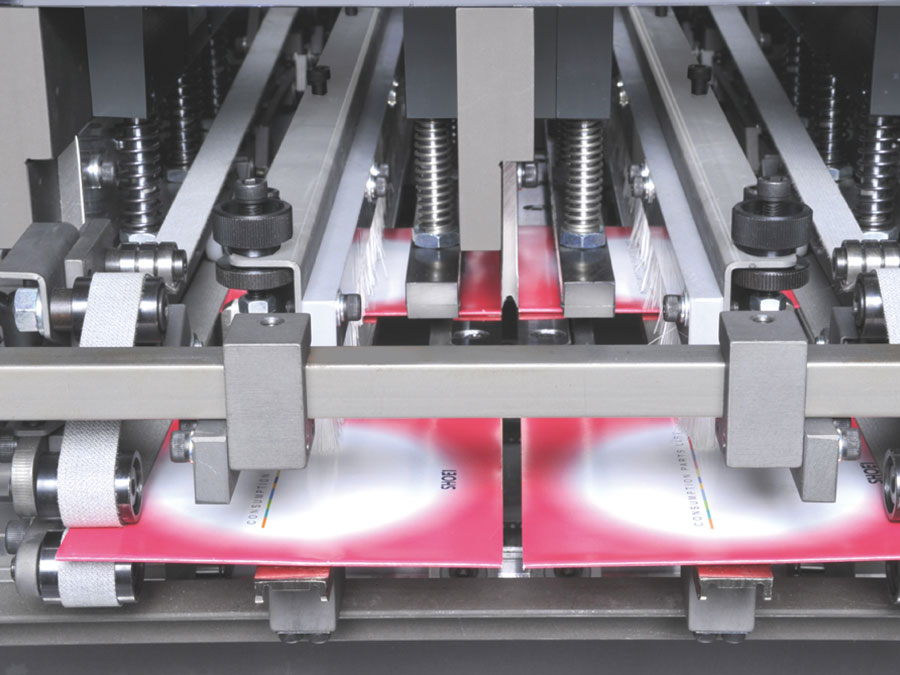

2 up Center Cutting
Option
Bleed off / 6, 8, 10 mm

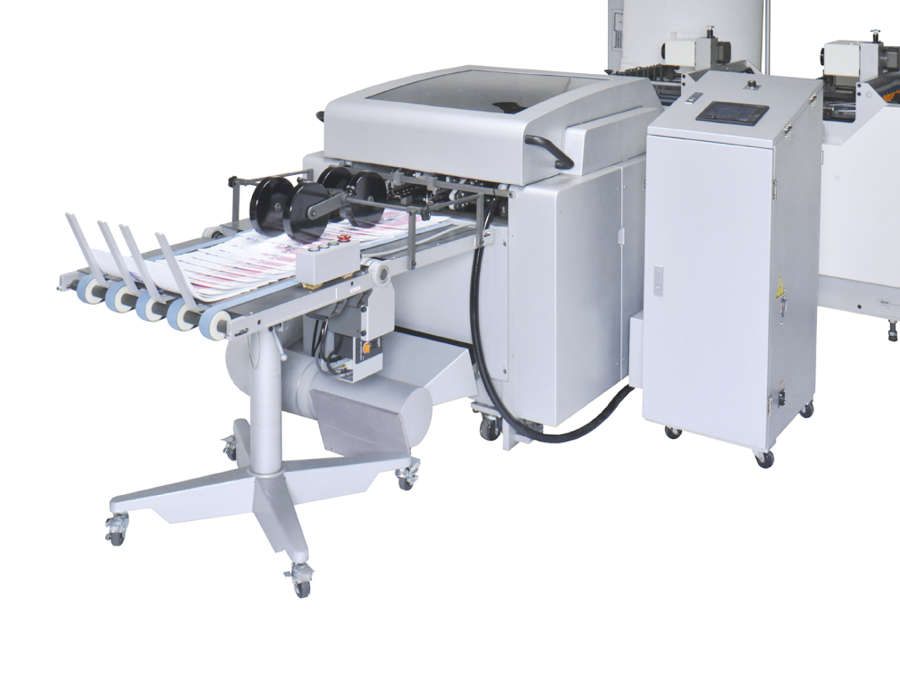

Trimmer with Operation Box

Specification

Machine size approx1322 L × 952 H × 894 B
Height Paper Inlet670mm (Trimmer body)
Height Paper Outlet670mm (Trimmer body)
Cutting order (Turn)Fore-edge to Top & Bottom
Handling Capacity7000 Volumes/hour with non stop
6000 volumes/hour in with intermittent
Power Required2.2 KW AC 200 3 Phase 10A
Cut SizeFore-edge :
Max. 260mm/ Min.75mm
Top & Bottom :
Max. 410mm/ Min.110mm
2up book Top & Bottom :
Max. 202mm/ Min.80mm
Gutter cut breadth :
6-10mm
