PRODUCT

ORIGINAL FEEDERS

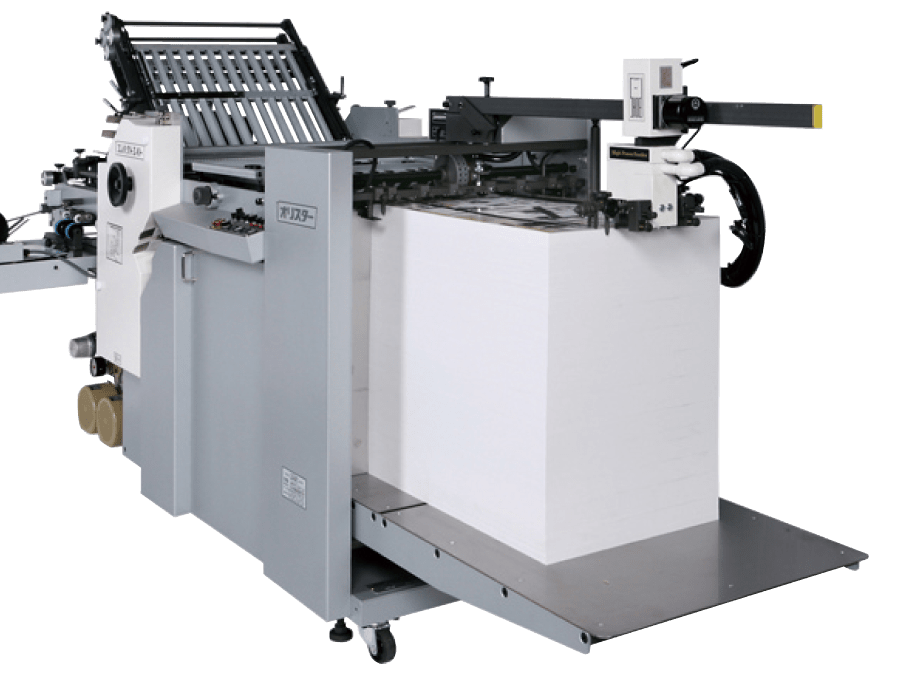

Flat Pile(Single board)

Flat Pile(Single board)

Shoei single flat pile board is of companct size yet offers big capacity and is easy to handle, operator friendly. Descending pace is as double as its elevating speed, which makes down-time minimum during re-loading.

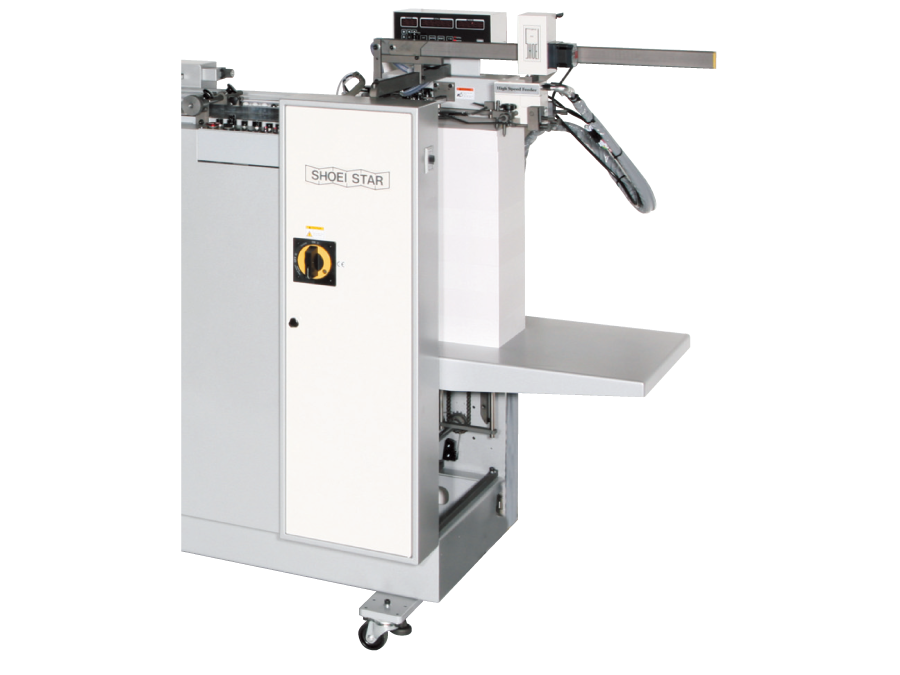

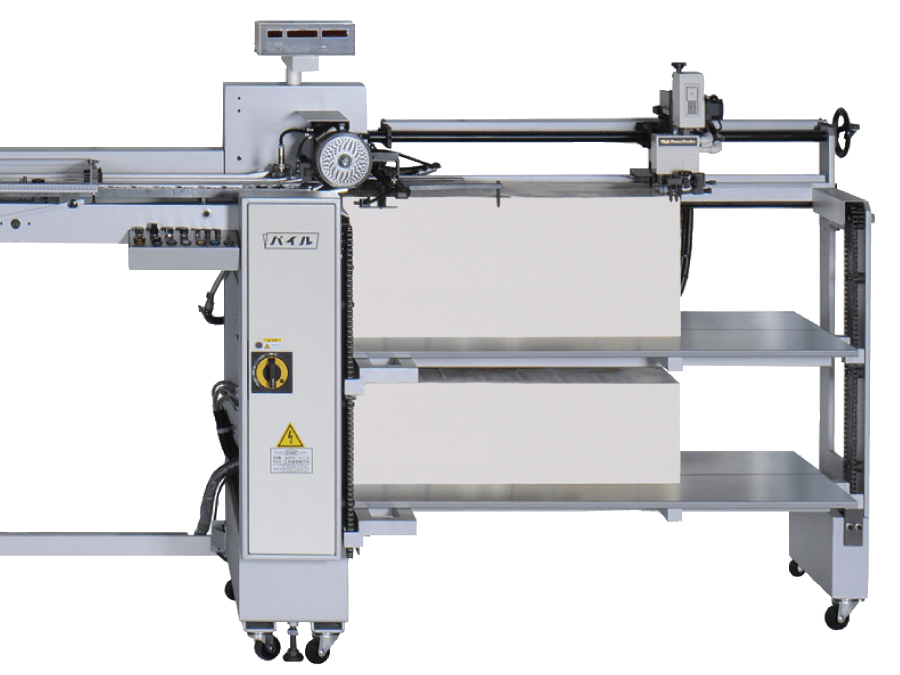

Flat Pile(Pre loader)

Flat Pile(Pre loader)

Pre-loading system can minimize down-time as bottom pile is stacked when upper is being fed to the folding section.

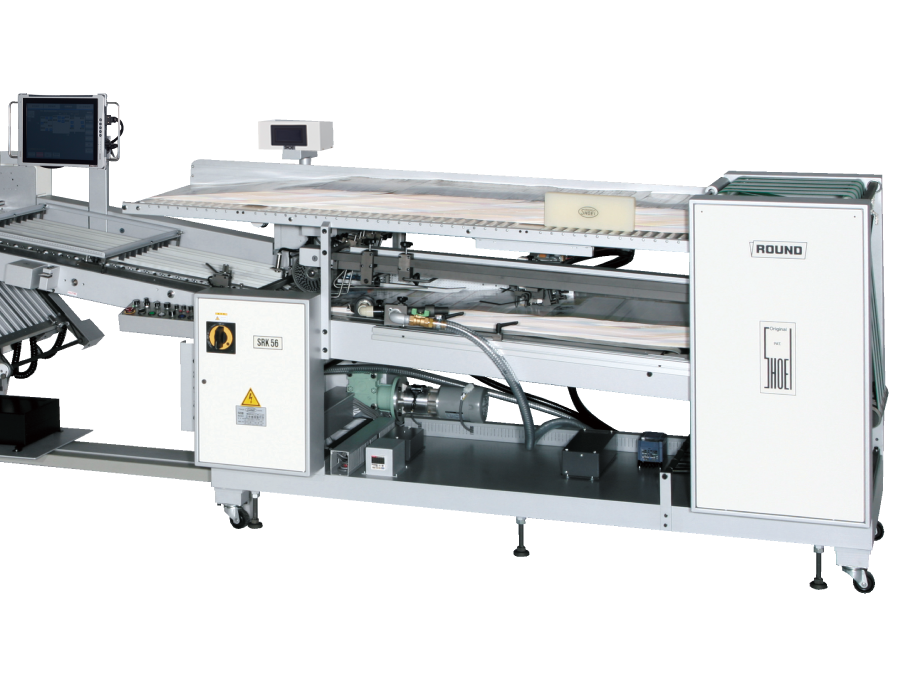

Round

Round

On Shoei continuous round pile feeder, stock is ventilated, piled sideways on top board and reversed on to the bottom board to get nonstop running.With rear sheet separation, the infeed of broad sheets of full ink coverage or curly stock is secured.With front & side blast system, the perfect infeed of triple/quadruple duplicate sheets, folded stock on web, stock with window, envelopes or small size format is obtained.

Front blast systemFor relatively small format or special stock mentioned on the left.

Side blast device
(self-compensating)
When rear sheet separator is used, this device is so effective to the good separation of curly stock.When front sheet separator is in use, the better-balanced infeed is obtained.

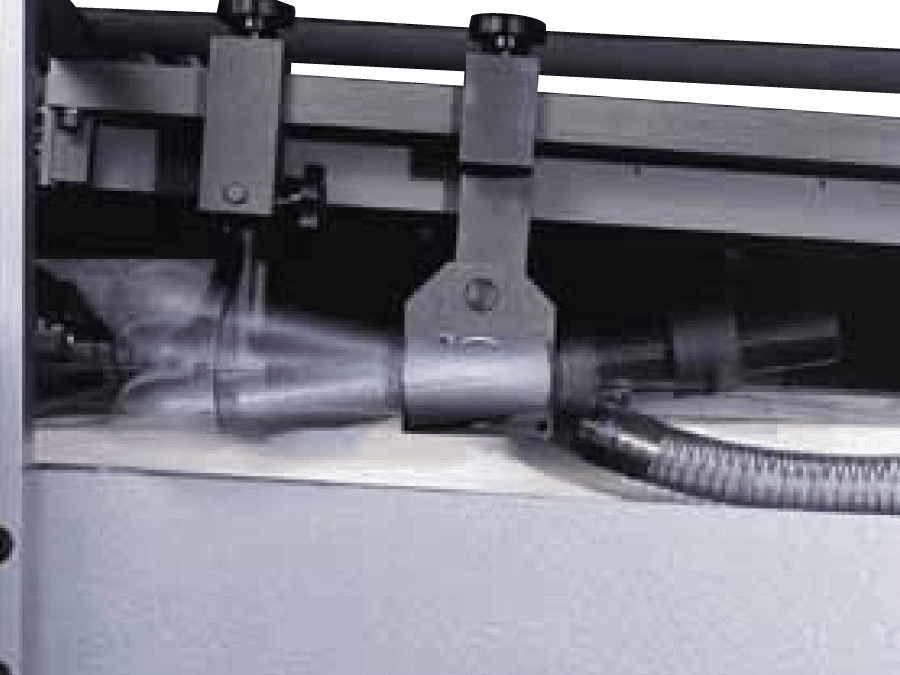

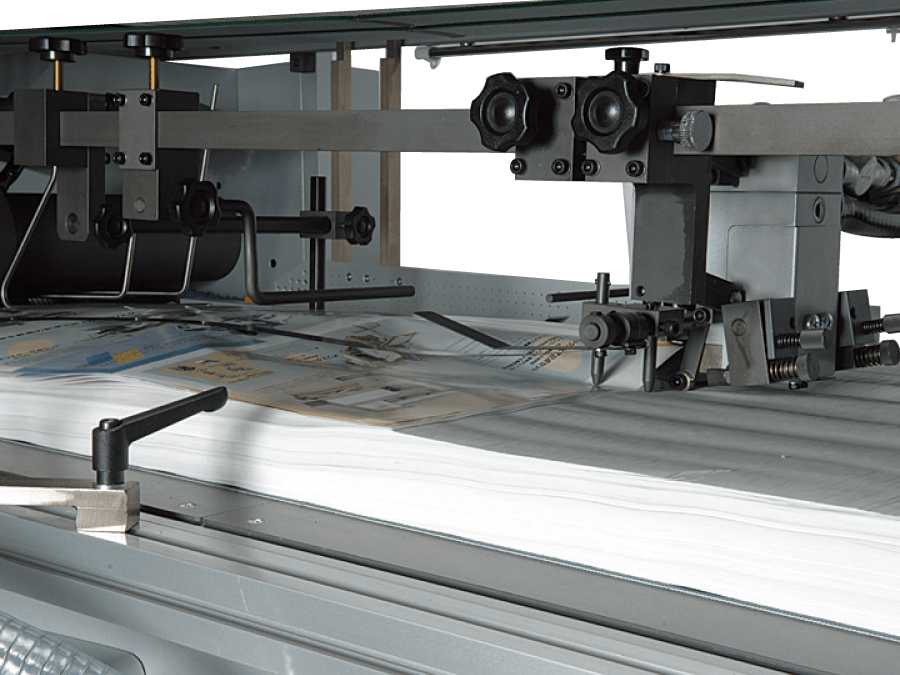

Rear sheet separatorSmooth sheet separation and infeed are guaranteed by this Shoei original feeder head controlled by accurate electric air valve.Most effective for the infeed of broad fomat and other stocks mentioned on the left.

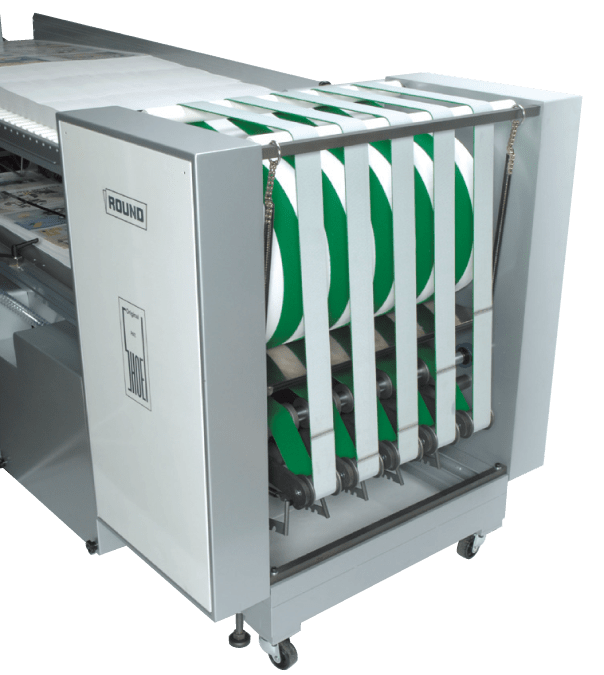

End drumAt the end of upper board, stock is reversed by simple upper bead-collar belts.Around the big drum, it is transferred accurately on to the lower board at the fixed pace.

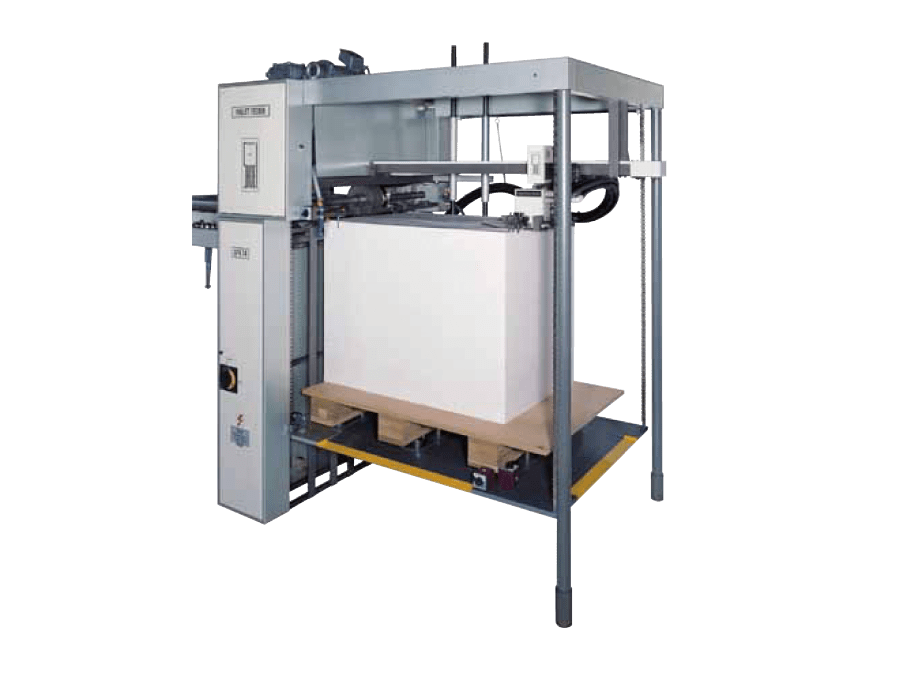

Pallet

Pallet

Pallet feeder is another version of nonstop feeder without pre-loading function.Can be used for manual piling or direct set-in of the pile on pallet.

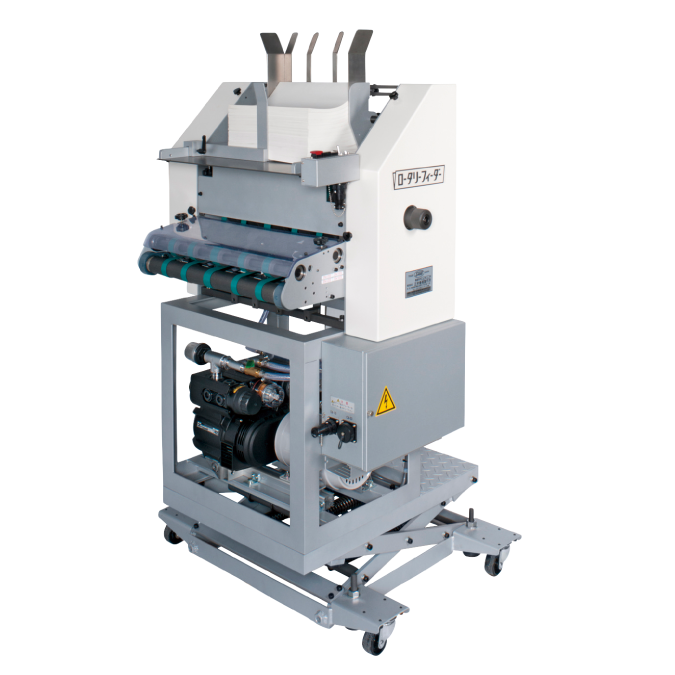

Rotary

Rotary

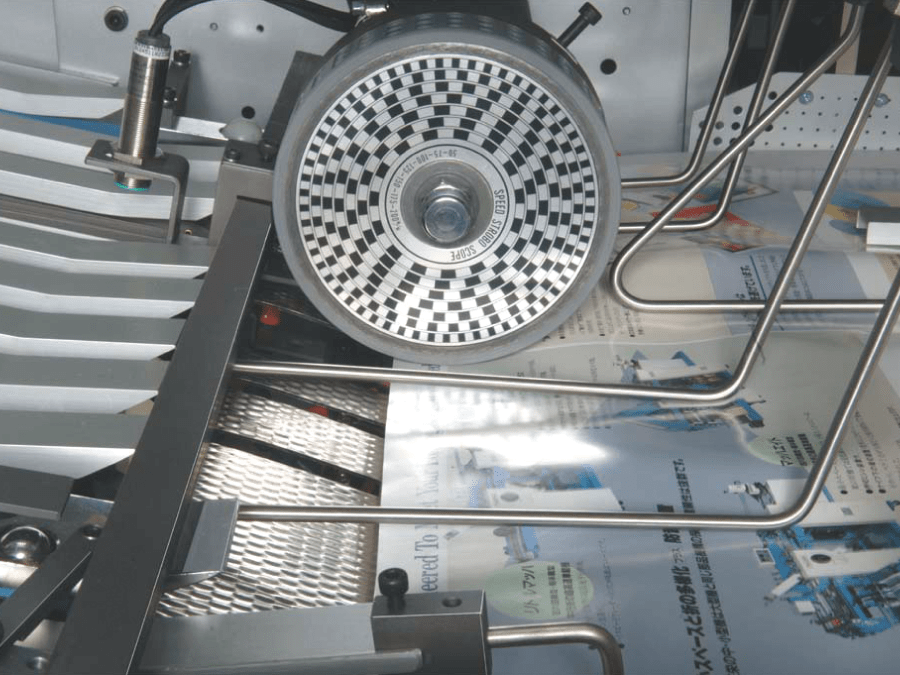

This is an easily attachable rotary feeder for refolding of web folds, stitched material or glued signatures.Feeding by the independent and powerful dry pump is reliable and smooth.

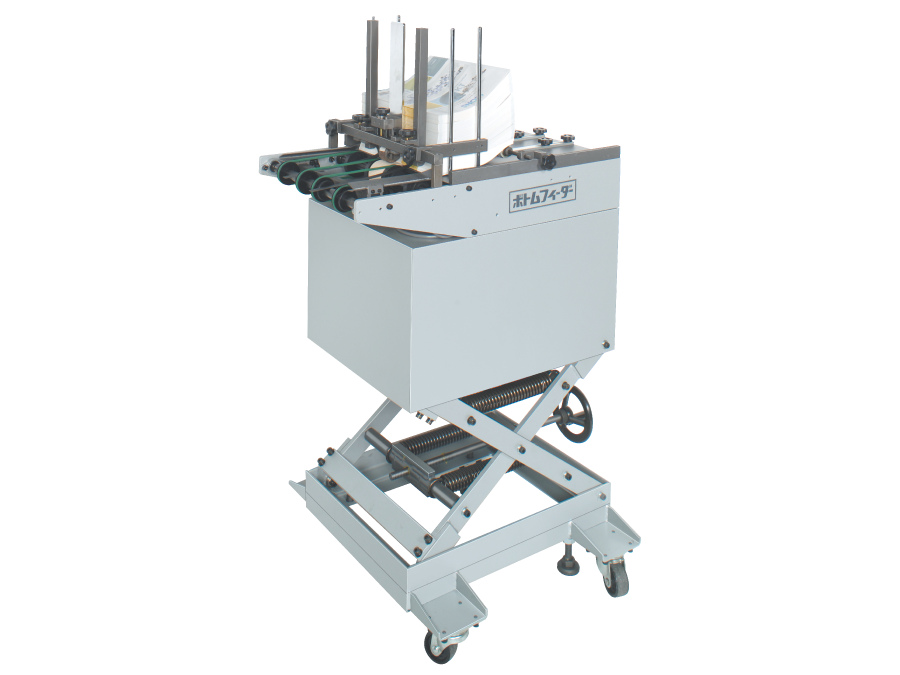

Bottom

Bottom

The friction belts and pinch rolls reliably control the paper, allowing smooth infeed from the bottom of the pile stack for the following: Job with different thicknesses in front and tail edges such as top-glued duplicates, envelopes, and refolding of web folds, stitched or glued signatures.

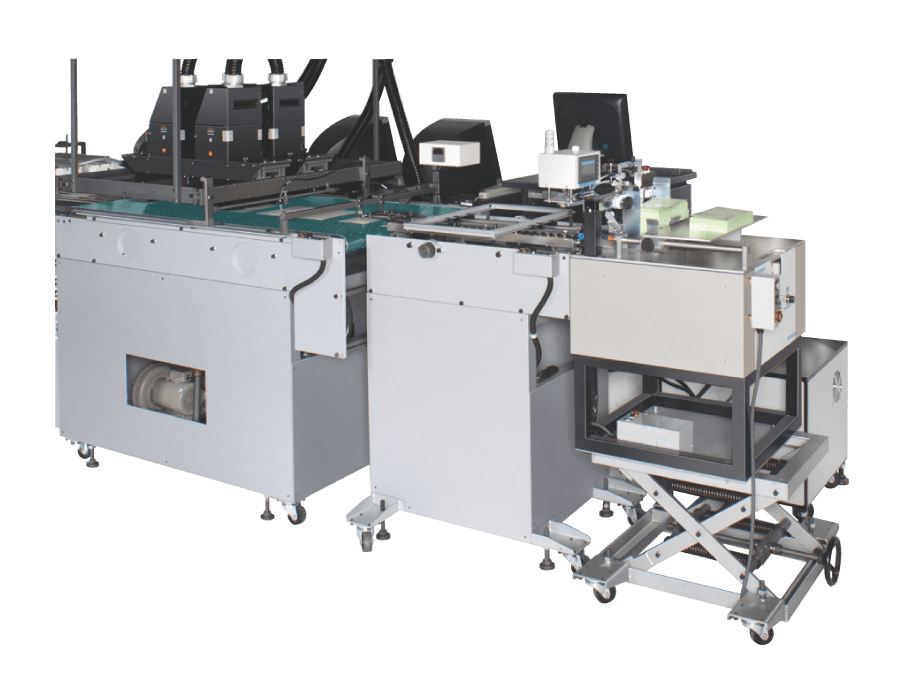

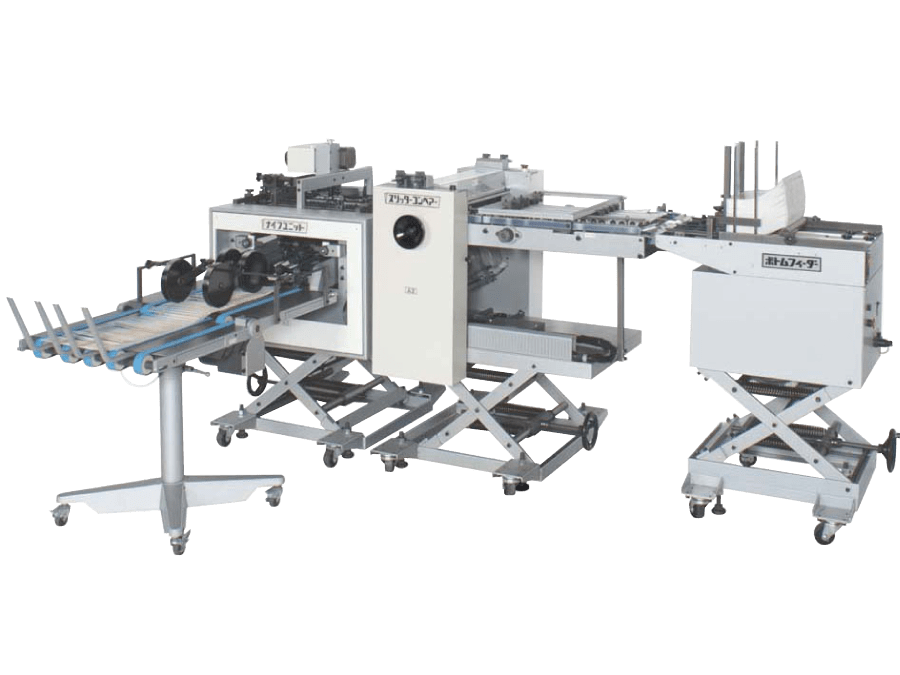

Bottom feeder + knife 1K unit

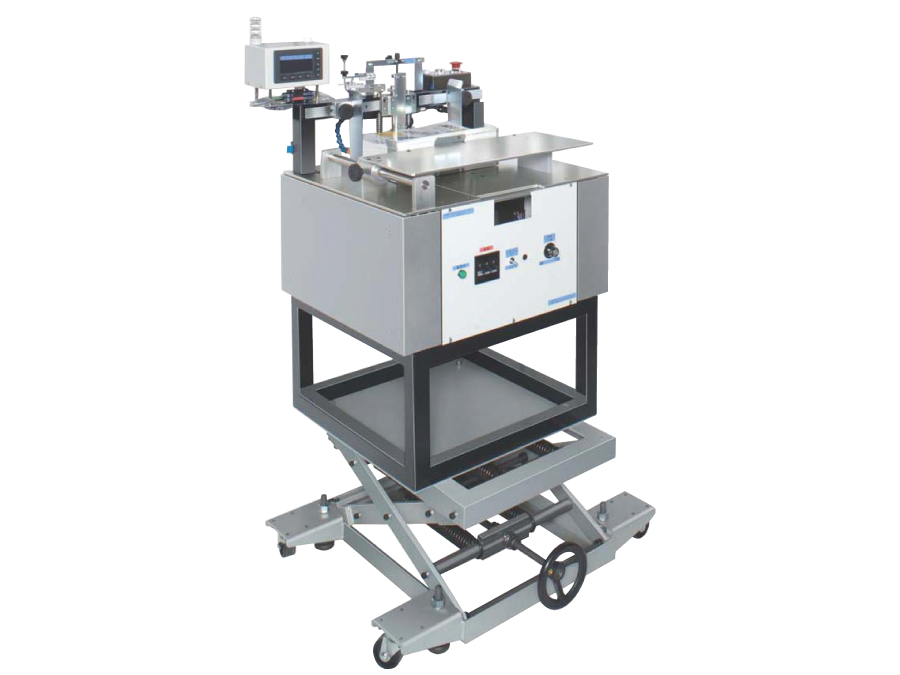

Shuttle

Shuttle

The friction belts and pinch rolls reliably control the paper, allowing smooth infeed from the bottom of the pile stack for the following: Job with different thicknesses in front and tail edges such as top-glued duplicates, envelopes, and refolding of web folds, stitched or glued signatures.

Joining to Shoei Sheat feederAttachment to your Shoei is simple.

Feeder(Mini Type)

Feeder(Mini Type)

From miniature sized to standard sized stock, rear sheet separator (Max.44×65cm ●Min.10×11cm)or front sheet separator (Min.5×10cm) can secure perfect infeed.

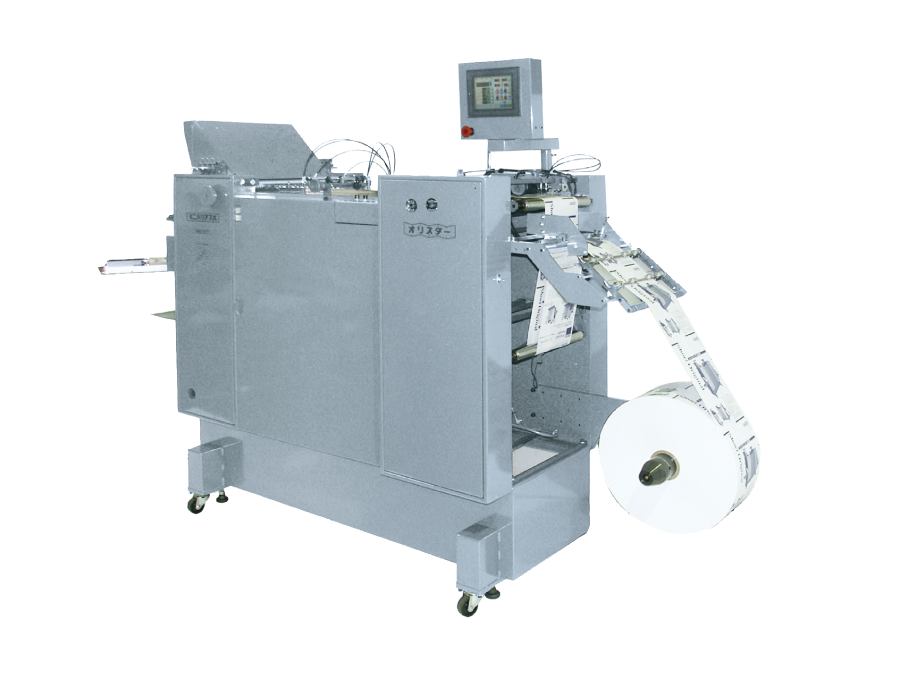

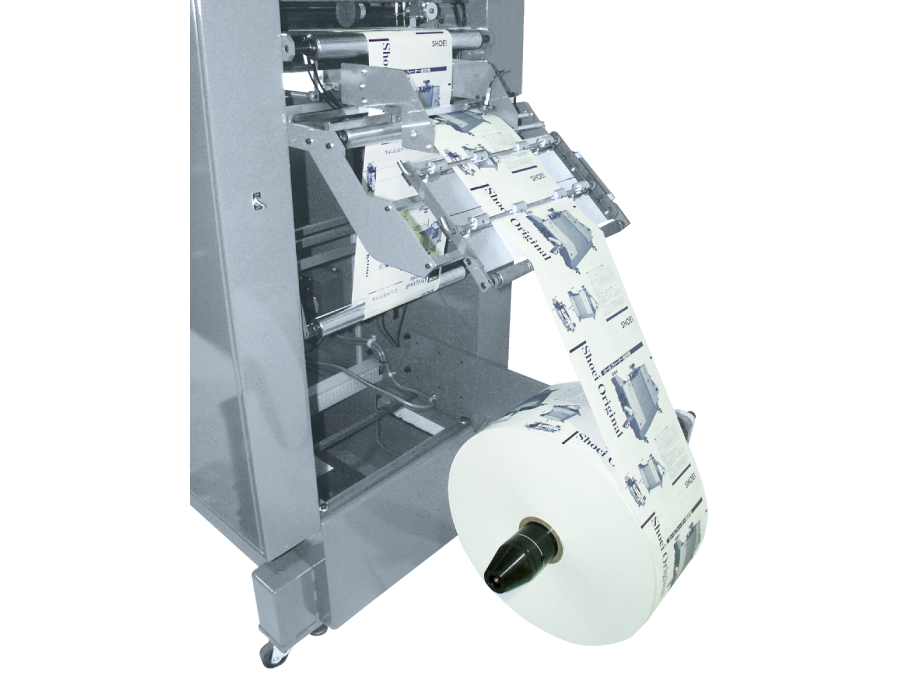

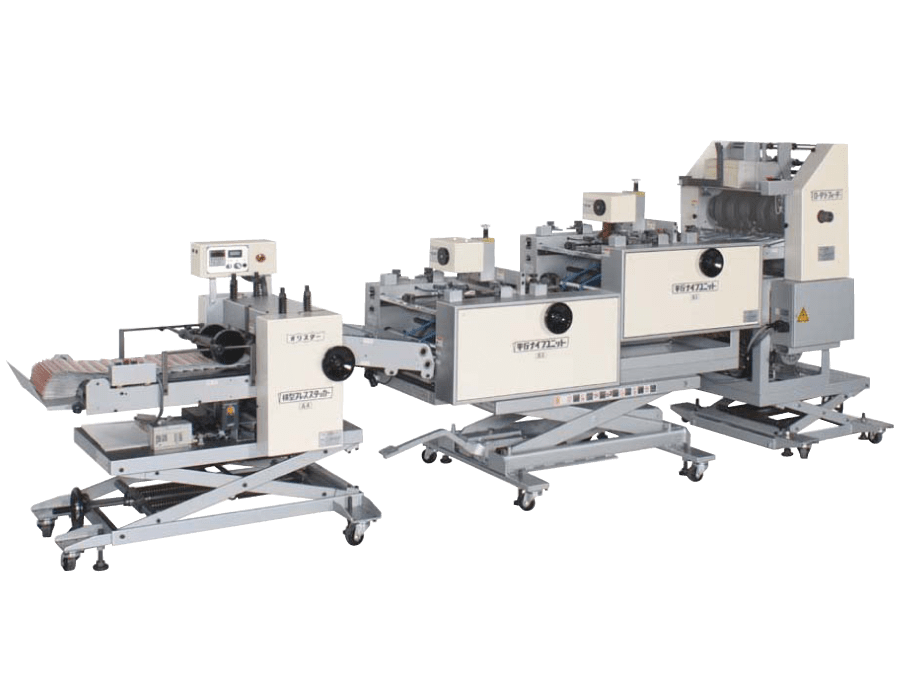

With original roll feederShoei roll feeder detects a cut-mark printed on stock and cut paper roll accurately & speedily with its rotary cutter. Roll feed system never causes bad infeed of thin stock due to its curl and low substance, mispiling by an operator or any mixture of different stock. In comparison with sheet feeder, roll feeder makes it needless to check mixture, colorfading, up side down/back to front mispiling, dog ear or curling. Once a roll is set on this feeder, nothing is to be checked but cut-mark by detector so folding rationalization is realized and total merit in operating procedure and in quality are obtained. Smooth infeed quaranteed to fit extra bar-code reader as a checker.
