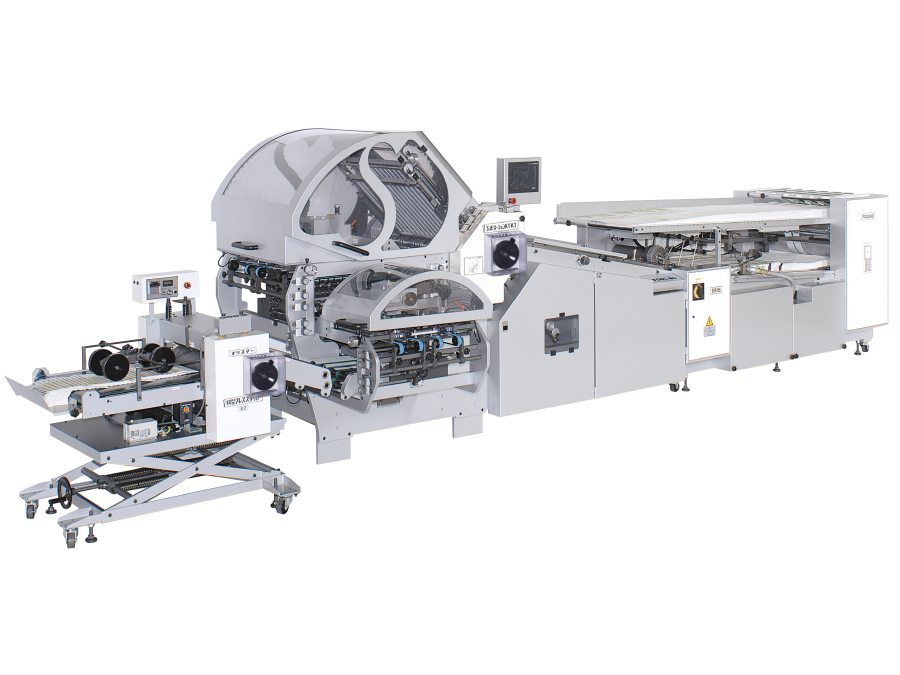

※Photo shows the 4-buckle model. There are also 6-buckle models available.Option “S”Style Cover / Touch Screen / FA-Ⅱ
Buckle4(standard) / 6(option)
660
740
800
950
66・74・82・97 / width

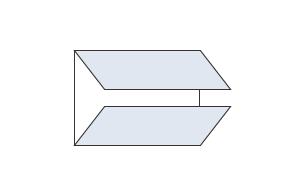

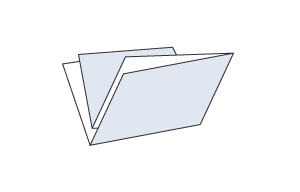

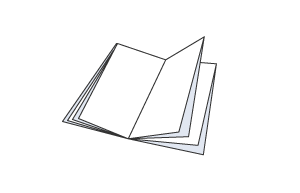

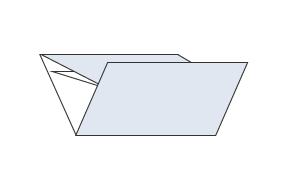

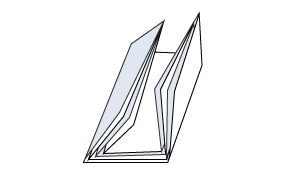

Handles up to 3 right-angle folds for catalogs, direct mail, and 16-page signatures. Can make tri-folds and double parallel folds with a left/right tab via the right-angle double fold unit. With its multipurpose knife mechanism, the buckle below the double fold knife can make special folds such as the 16-page fold (parallel half fold + double parallel fold) for various catalogs and folds for inner binding. Optional reverse fold buckle can be installed in the pocket below the double fold knife to easily create 16-page signature folds with imposition.

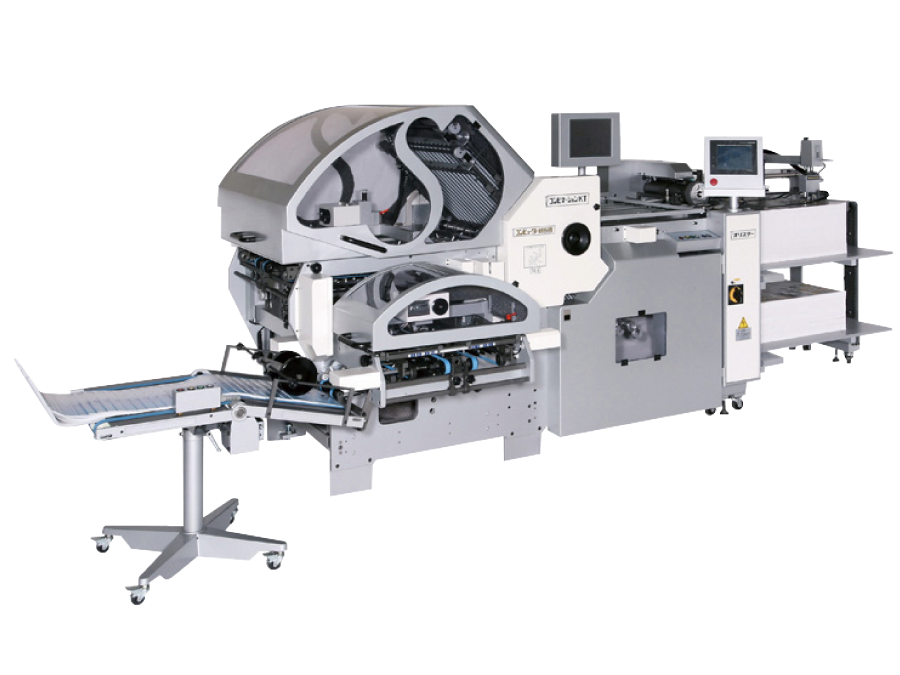

※Option “S”Style Cover / Touch Screen FA-Ⅱ
56・66・74・82・97・112cm／width
Right angle parallel fold by side pocket & 16 page folding. High power feeder for positive sheet separation. Polyurethane coated vacuum rotary drum for smooth infeed. Batch/counter/tachometer/jam detector and double sheet detector are all standard. Fold roller with hardened steel & ceramic segments for both long durability & best grip. Hinged deflector for quick change over. Detachable slitter shaft for easy access. Full width motorized delivery table. 1st and 2nd fold knifes fitted on the opposite as well (4KZ,4KLZ).
option:4KTLZoption:4KTLZ 1st and 2nd fold knifes fitted on the opposite as well(4KZ,4KLZ).
※Touch screen,Option “S”Style Cover. & FPSA4
56・66・74・82・97 cm / width
Two opposing pockets under both 1st and 2nd cross fold knives.

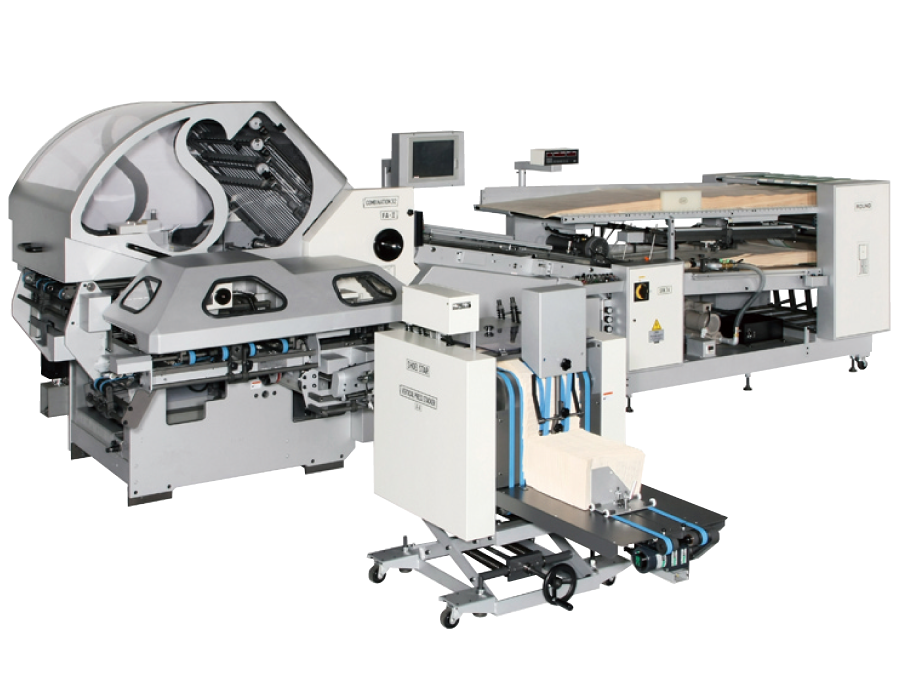

※Option “S”Style Cover / FA-Ⅱ / Vertical press stacker
66-112 cm / width
A sophisticated range of combination buckle plate and knife folders offering maximum versatility and producitivity. These units have a long proven record of reliability and profitability in many installations throughout the world. Equipped with 4 parallel fold plates (6,8 plates available as optional extra), the first knife followed by horizontal side fold plate and the second (for 16 page), third knife for 32 page. Top quality folding guaranteed for line-up job for stitching, any signature job or various catalogue folds.

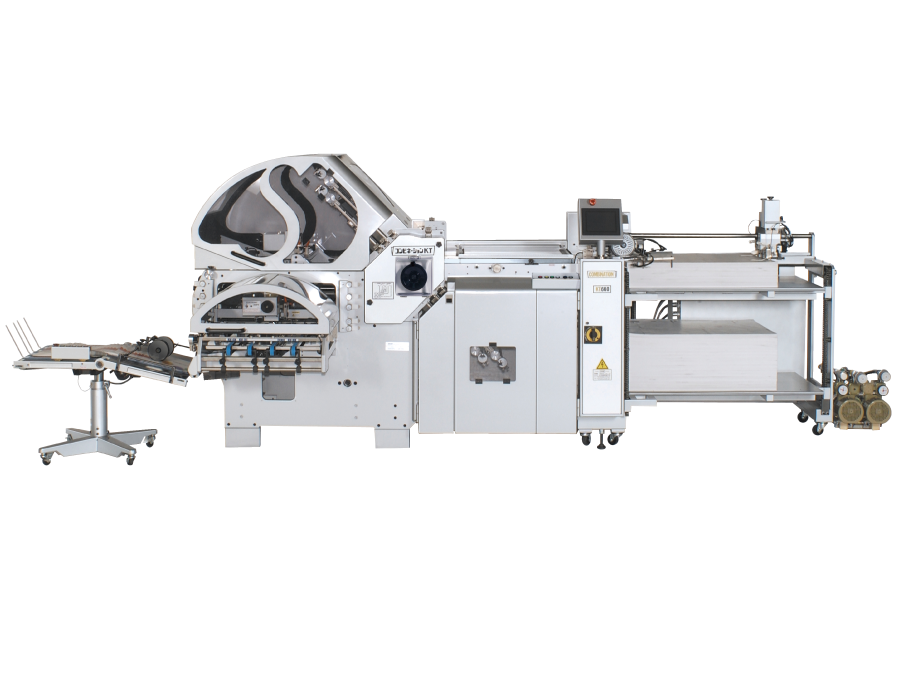

※ Option “S”Style Cover. Touch screen
56・66・74・82・97・112 cm / width
16page Signature folder.
※option:Vertical press stacker
56・66・74・82・97・112cm / width
Compact yet so multi-functional. The world's most versatile 32 page combi folder.
